1994 Jaguar XJ12 with 383 Chevy V8 Hot Rod Street Machine Race Car

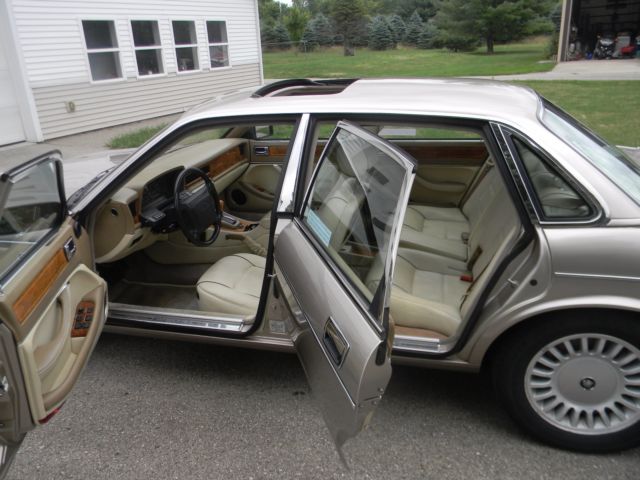

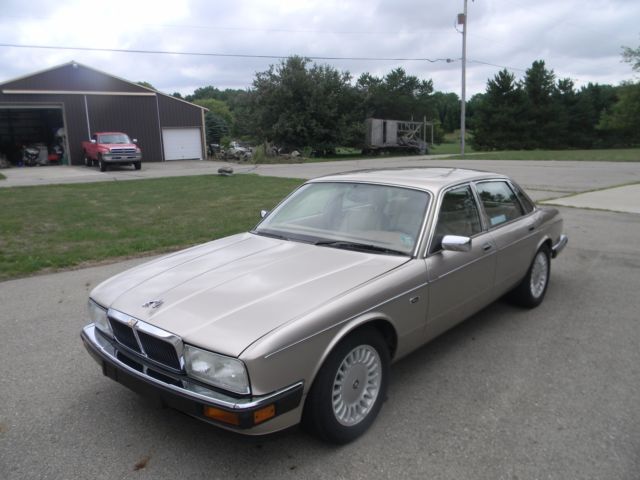

1994 Jaguar XJ12

Technical specifications of Jaguar XJ12 1994

Price: -
Condition: Used
Item location: Grand Ledge, Michigan, United States
Make: Jaguar
Model: XJ12
Type: Sedan
Year: 1994
Mileage: 100,400
VIN: SAJMX1344RC703986
Color: Metallic Beige
Engine size: 383 cubic inch small block Chevy
Number of cylinders: 8
Power options: Air Conditioning, Cruise Control, Power Locks, Power Windows, Power Seats
Fuel: Regular Unleaded
Transmission: automatic - 700R4
Drive type: RWD
Interior color: Light Tan
Safety options: Driver Airbag, Passenger Airbag, Side Airbags
Vehicle Title: Clear
You are interested? Contact the seller!

Car description

This is a high level installation of a 383 cubic inch small block Chevrolet and 700R4 transmission into a rust free 1994 XJ12 Jaguar. The car is from Montana and the engine and transmission were built here in the Lansing Michigan area. The total cost of the project approached $10,000 in parts. The build was completed in November of 2014 at 94575 miles on the car's odometer. The car now has 100400 miles on the odometer. I have a detailed photo record of the build that I can send you via email if requested. A complete list of the parts installed and modifications made are listed below. This vehicle is a steal at the asking price and is a great vehicle to drive. The engine has a mild cam and compression ratio and runs on regular unleaded. You can easily take this car to a higher performance level if desired. I need to move this car to help pay for my current project. Thanks for the interest.
XJ383 Parts List
(non-production Jaguar parts)
Part Source Identification Modification
"383 four barrel" Badge Ebay Production Chrysler
"Hot Rod" script Speedway 550-5696
AC Compressor mounting Fabricated
Adapter - fuel hose to carburetor Quadrajet Parts Q2221
Adapter, oil pressure sensor
Adapters, fuel line to hose
Air cleaner Oldsmobile V8 HEI clearance, second air inlet
Air intake hose Lane Automotive Allstar ALL42151 P/N is for 10 feet, cut to lentgh
Alternator mounting Fabricated
Bearings King Standard size SBC
Belt - sepentine CarQuest Gates K070610
Belt - vee CarQuest XL 7597
Blanking Plate - air cleaner inlet Fabricated
Block to isolator adapters Fabricated
Bolt - damper to crankshaft Summit ARP 134 - 2501
Bolts - camshaft Jeg's ARP 134-1001
Bolts - flex plate Jeg's ARP 100-2901
Bolts - heads Summit ARP 134-3601
Bolts - main caps Jeg's ARP 134-5202
Bolts - Oil pan GM production SBC
Bolts - starter Jeg's Included with starter
Bolts - timing cover GM production SBC
Bracket - fuel lines Fabricated
Bracket - fuel regulator Fabricated
Brackets for plastic air horns Fabricated
Cam Jeg's Howard Cams 112561-12S
Carburetor Ebay GM Quadrajet 7044202
Carburetor gaskets Bowtie Overdrives part of kit TVEZ1910
Crank pulley - serpentine Jaguar XJ12 front sheave removed
Crank pulley - vee Speedway 910-15473
Crankcase Ventilation system Oldsmobile Production V8 Hose instead of tubing
Crankshaft White Perf & Machine Scat cast 3.750 stroke
Cylinder heads Pierce Dart 127221
Damper White Perf & Machine Professional Products 80001
Dip Stick Jeg's Spectre 4255
Divorced choke coil Quadrajet Parts Q1208
Divorced choke cover Quadrajet Parts 1280
Divorced choke link Fabricated
Driveshaft - front Precision Driveshaft
Driveshaft - rear Jaguar XJ12 spline yoke replaced with flange from front shaft
EGR blanking plate Fabricated
EGR gasket CarQuest production SBC

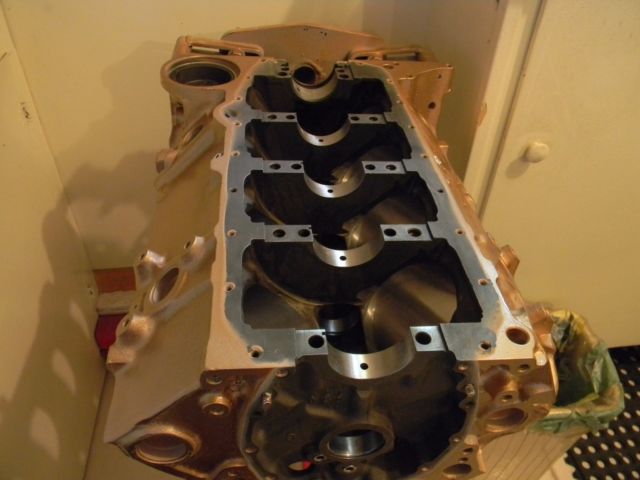

Engine Block, sbc four bolt main GM casting #3970010 Fuel pump bosses removed
Exhaust Manifolds Speedway 930-0327LH,RH LH mounting bracket removed
Exhaust system Jaguar XJ12 converters removed, fabricated S.S. tube
Filter - air cleaner Oldsmobile AC A212CW
Filter - oil CarQuest production SBC
Flex Plate White Perf & Machine 153 tooth balanced for 383 rotating assembly
Gauge cluster Jaguar 1994 XJ6
Head Gaskets Jeg's Fel Pro 1003
Heat riser tube and oven Fabricated
Heat Riser Valve Paragon Corvette 2 1/2 inch
HEI Ebay production SBC 24 degrees centrifical advance, 16 vacuum
Hose - AC comp to top of evap Jaguar XJ12 legthened by ARA air conditioning service
Intake manifold GM 1980 Corvette divoced choke pad welded and machined
Intake manifold gaskets CarQuest GSK MS15315
Isolator to crossmember adapters Fabricated
Isolators CarQuest production SBC
Oil Pan GM production SBC clearanced for steering rack, larger volume
Oil Pan Gasket Jeg's One Piece 555-21005
Oil Pump Jeg's Melling 689-M55
Oil Pump stud Johnson's Speed Shop Moroso SBC 26200
PCV valve CarQuest production SBC
Pistons White Perf & Machine Probe 3832F - .030 (-22cc)
Power steering mounting Fabricated
Push Rods Jeg's Comp Cams 7693-16 (.100 long 5/16)
Radiator fan shroud Jaguar XJ12 lexan added to lenthen shroud
Radiator hose - lower Fabricated
Radiator hose - upper Fabricated
Regulator - fuel pressure Jeg's Holley 12-803BP
Rings - piston White Perf & Machine Hasting's production SBC +.030
Rocker arms Jeg's Harland Sharp S1001
Rocker cover gaskets Jeg's Fel Pro 375-1604
Rocker cover hold downs Aftermarket
Rocker cover studs Jeg's ARP 200-7601
Rocker covers Aftermarket
Rods White Perf & Machine ProComp PC41104 (5.7 inches)
Seal - front crankshaft CarQuest SLS 9845
Seal - rear crankshaft CarQuest GSK JV1627
Spark Plug Wires Jeg's MSD Street Fire 121-5566
Spark Plugs Summit AC R45TS
Springs - front suspension Jaguar 1994 XJ6
Starter Jeg's 555-10080 Replaced - Summit Powermaster PWM9004
Tachometer adjustable signal divider Jaguar Specialties ATSD Replaced - Dakota Digital
Tensioner adjusting links Jaguar XJ12 drilled for larger bolts
Tensioner Pulley - serpentine belt Jaguar XJ12 clearance for belt and larger bolts
Tensioner Pulley - vee belt CarQuest Armour Mark 38006 fabricated lever arm
Thermostat CarQuest production SBC - 180 degree
Thermostat housing Speedway 910-15821
Throttle cable bracket Fabricated
Timing cover GM production SBC
Timing gear and chain Jeg's Cloyes 220-9-1100
Timing pointer Jeg's Mr. Gasket 720-4527
Torque converter cover Ebay aftermarket
Torque converter vaccum switch Ebay Shift Technology Products A74439A
Transmission Rick Boyd GM 700R4 1997 F car Rebuilt by Gordon Stoney
Transmission crossmember Jaguar XJ12 modified for 700R4 isolator
Transmission isolator CarQuest production Chevrolet
Transmission isolator - bracket Fabricated
Transmission TV cable kit Bowtie Overdrives TVEZ1910
TV cable Bowtie Overdrives part of kit TVEZ1910
TV cable bracket Bowtie Overdrives part of kit TVEZ1910
Water Pump Speedway 910-155
Water pump pulley Oldsmobile 3 sheave deep drawn (403 V8) removed two sheaves
