1 Ton Rock Crawler Ford Ranger 44" Tires

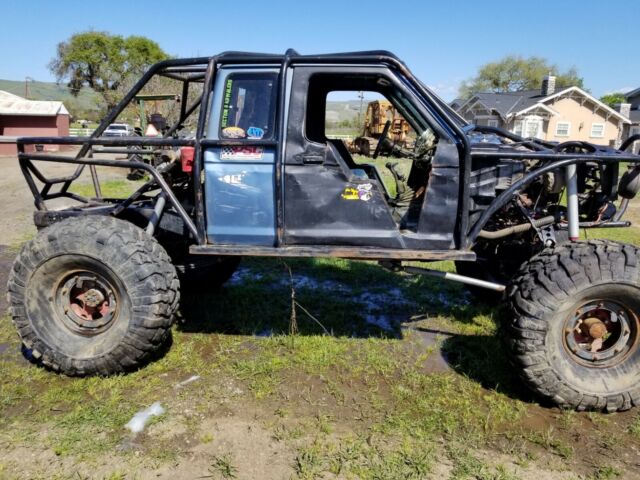

1989 Ford Other Ranger Built 1 Ton Rock Crawler 44" Tires on Beadlocks

Technical specifications of Ford Other 1989

Price: -
Condition: Used
Item location: Morgan Hill, California, United States
Make: Ford
Model: Other
SubModel: Rock Crawler
Type: Cab & Chassis
Trim: Ranger Built 1 Ton Rock Crawler 44" Tires on Beadlocks
Year: 1989
Mileage: 1000
VIN: 1FTCR15T9KPA53561
Color: Blue
Engine size: 2.9 Liter V-6
Number of cylinders: 6
Fuel: Gasoline
Transmission: Manual
Drive type: 4WD
Drive side: Left-hand drive
Options: 4-Wheel Drive
Vehicle Title: Clear
You are interested? Contact the seller!

Car description

This crawler has performed very extremely well at trails like the Rubicon, Fordyce, the Hammers, and dominates Hollister.
Build thread:
https://www.pirate4x4.com/forum/ford...ite-rhino.html
Specs:
1988 Ford Ranger Regular Cab Ranger Frame
1989Ford RangerExtended Cab
2.9 Liter V-6
Mitsubishi(OEM Ford Ranger) Trans 5-speed, with new Luk clutch

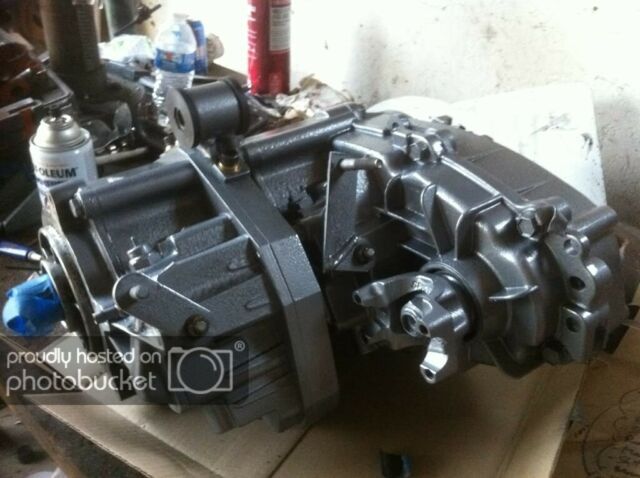

Stubler Dual Transfer Cases Borg Warner 1350-1354 (120:1 crawl ratio)
Engine/transmission/transfer case mounted with polyurethane bushings
DOM/ .25" plate belly skid
CA Green Sticker, clean title needs to be re-registered
Diehard Platinum Battery
LED light bar
Corbeau suspension seats with 4 Point harnesses

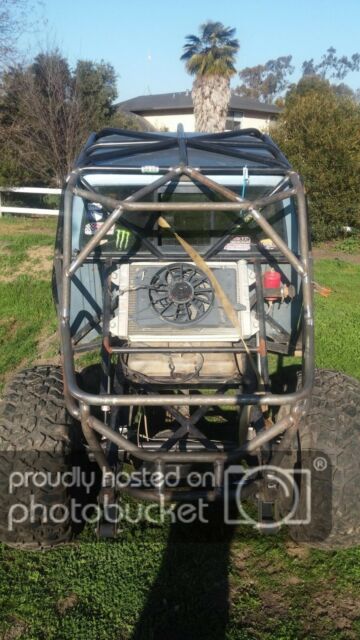

Rear Mounted Aluminum radiator with Taurus fan
126" wheel base.
Front End/Axle/Suspension:
1988 Ford high pinion king pin Dana 60 with Yukon 5.13 gears.Welded differential, trussed, fully plated steering knuckles,35 Spline Yukon chromoly axle shafts with drive flanges.Parts Mike high steer arms with ARP Studs, PSC full hydraulic steering system with double ended ra, high pressure P-Pump steering pump, PSC resovoir, and B&M Super Cooler steering cooler. Tie rods are 1.5" 1/4" wall DOM with Ruff Stuff Specialties 3/4 Heim Joints.3 Link front suspension 2" 1/4" wall DOM links and Pan Hard with Ruff Stuff Specialties 1.25" Heims joints.
18" 2.5" Sway-a-way nitrogen Air shocks with Tri-Nitrate Coated Shafts
Smittybuilt 8k winch, used as a suck down winch.
Rear End/Axle/Suspension:
63" Chevy Leaf Springs, Re-drilled
16" Sway-a-way nitrogen air shocks in back with leafs, which were added to avoid sagging with gear loaded, and also helps with stability.
Eaton H072 rear axle with disc brakes (Chevy one ton calipers and cross drilled rotors). Custom housing which has been shaved to increase ground clearance. The axle housing is also trussed and plated.
Cage:
Full Exo (exterior) roll cage around cab, and caged front to back. All tubing is 1.75" .120wall DOM. Rock sliders are 4x2 box tube mounted to the frame with 2" 1/4 wall square tube.
Chassis:
Center frame is fully boxed with 1/4. All link mounts are extremelybuilt, with 1/4 or 3/8's tabs with 1/4 strengthening around bolt holes. All of the chassis and cage was welded with a Millermatic 250.
Wheels/Tires:
44" (44x19.50R16.5) Pitbull Rockers ($700 each!)
Performance Cryogenics Re-centered military Humvee 8 bolt H1 double beadlock wheels (mounting surface is 3/4" steel, with Trailworthy Fab PVC insertsto replace the old run flats
Sold as is, Buyer accepts all liability, No Warranty expressed or implied.
