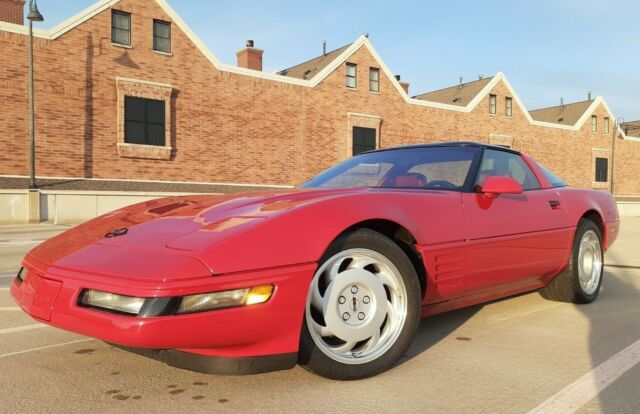

1991 CHEVROLET CORVETTE ZR-1 !!! ONLY 15K.MILES !!!

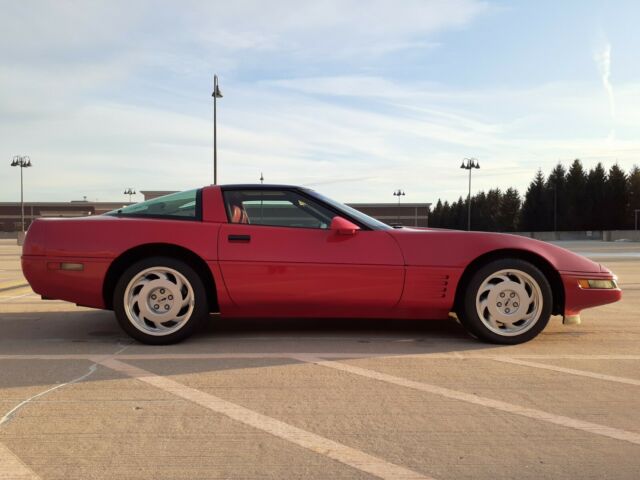

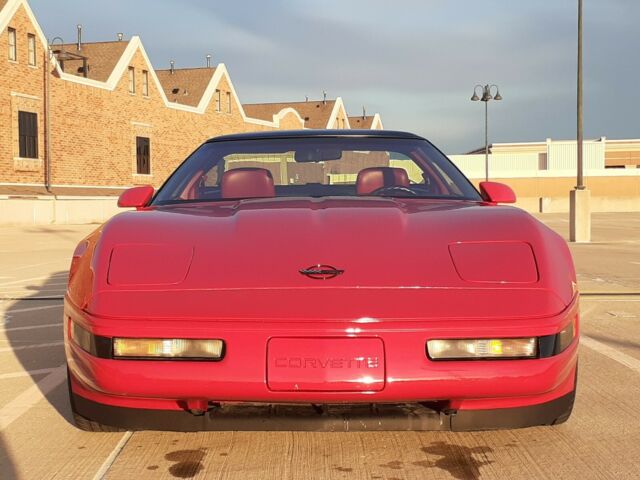

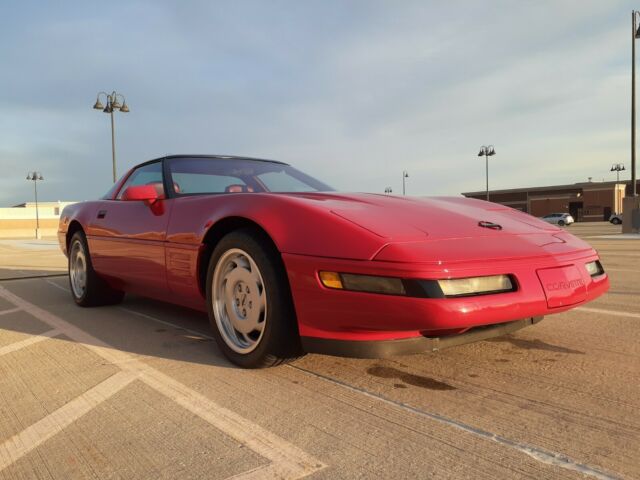

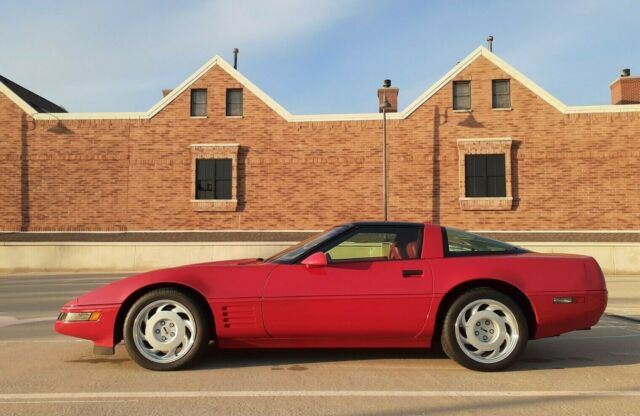

1991 CHEVROLET CORVETTE ZR-1 with 5.7L 32V engin, manual transmission, power windows and doors, leather seats .

General MotorsacquiredGroup Lotus, a UK based engineering consultant and performance car manufacturing firm. The Corvette division approached Lotus with the idea of developing the world's fastest production car, to be based on the C4 generation of the Corvette. With input from GM, Lotus designed a new engine to fit in place of the L98 V8 that was powering the standard C4.The result was what GM dubbed the LT5, an aluminum-block V8 with the same bore centers as the L98, but with four overhead camshafts and 32 valves. Lotus also designed a unique air management system for the engine to provide a widerpower bandby shutting off 8 of the 16 intake runners and fuel injectors when the engine was at part-throttle, while still giving the ZR-1 a power output of 375hp (280kW) when atwide open throttle. In addition to the engine, Lotus helped GM design the ZR-1's (which in prototype version was called "King of the Hill"upgraded braking and steering systems.The ZR-1 is fitted with Goodyear Eagle Gatorback tires having size of P315/ 35ZR-17 specially made for the car along with bigger ventilated disc brakes. Due to the heavier engine and body work along with wide tires, the ZR-1 is 200lb (91kg) heavier than the standard C4 Corvette. The ZR-1 came standard with the UJ6 Low-Tire-Pressure Warning System along with an ABS system manufactured byBosch. The FX3 suspension system was engineered by Bilstein and was similar to the system used in thePorsche 959albeit with modifications from the Lotus Formula 1 division. The system used a gas-over-oil shock absorber whose hollow center shaft came fitted with an adjustable orifice which controls the flow of oil in the shock absorber. The system allowed for six damping settings in each of the three driving modes namely Touring, Sport, and Performance and had 14 total steps. Servomotors coupled with a microprocessor governed the vehicle's speed and adjusted the suspension system accordingly.

The 5.7-litre 32-valve LT5 engine unique to the car had a central bore spacing of 4.40 inches. The distance was maintained by reducing the bore from 4.00 to 3.90 inches while the stroke was increased from 3.48 to 3.66 inches. The aluminum cylinder liners were Nikasil-coated and the engine block has a cast-aluminum oil sump. The crankcase has integral four- and six-bolt cast-iron main bearing caps which secure the forged steel crankshaft into place. The four camshafts of the engine are driven by a roller chain and actu­ate hydraulic lifters that eliminate valve lash adjustment. The four-valve combustion chambers feature cen­trally-located spark­ plugs which act in combination with dished aluminum pistons enabling for a compression ratio of 11.0:1. The engine held 12 quarts of oil, 7 more than the L98 engine. The LT5 also came with a unique two valve induction system along with 16 tuned-length intake runners and a specially designed intake manifold using three throttle bodies. The small primary throttle body was for responsive low speed operation while the two large secondary throttle bodies enabled for full-power usage. The engine used direct-fire ignition: Four coils ignite two spark plugs simultaneously, upon receiving their cue from a crankshaft sensor acting in combination with the ECM. Spark advance and retarda­tion are electronically controlled by the ECM, which gets an additional information from a knock sensor. A distinctive cooling system incorporating a 15% larger radiator ensured that the operating temperature of the engine remained the same as the L98 despite the differences in construction and operation.

In order to transfer power efficiently to the rear wheels, a unique 6-speed manual transmission manufactured by ZF was installed with a code name of ML9. The transmission used Computer Aided Gear Se­lection (CAGS) which forced the driver to shift from first to fourth under low power urban driving conditions. The transmission has a tweaked ring and pinion ratio of 3.54:1 and a lower final drive ratio of 3.33:1.

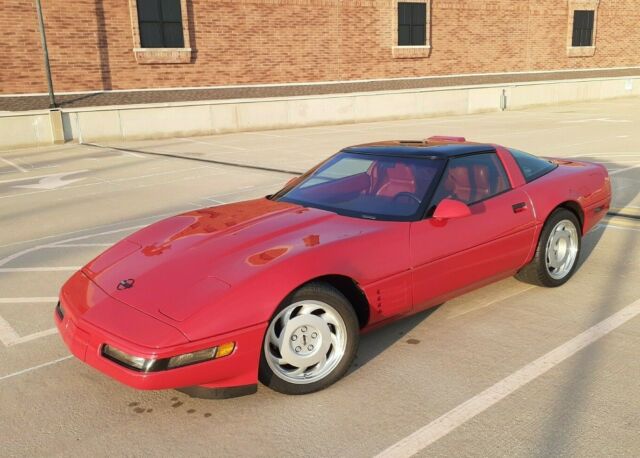

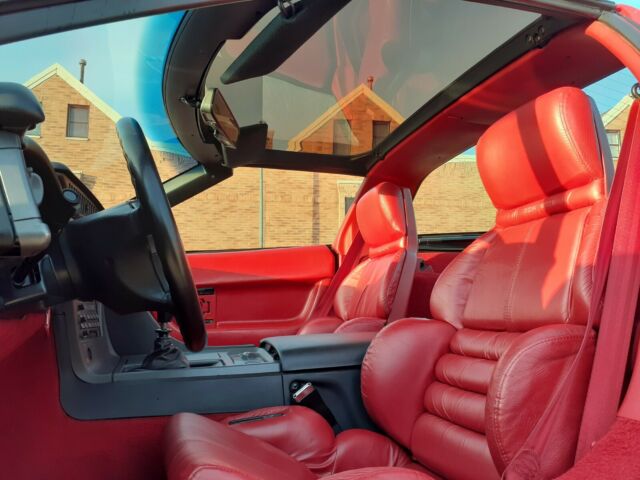

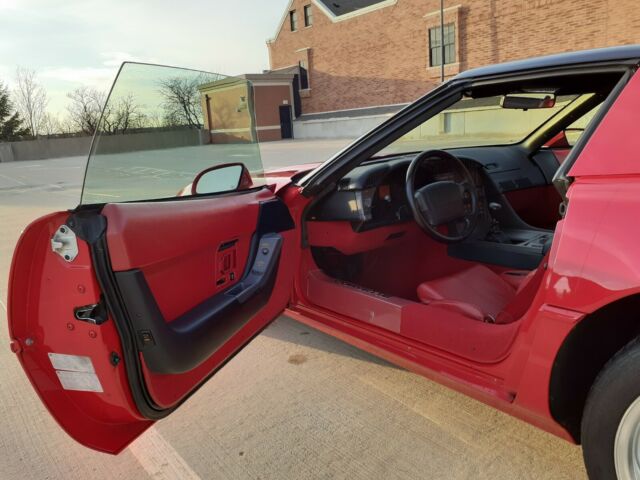

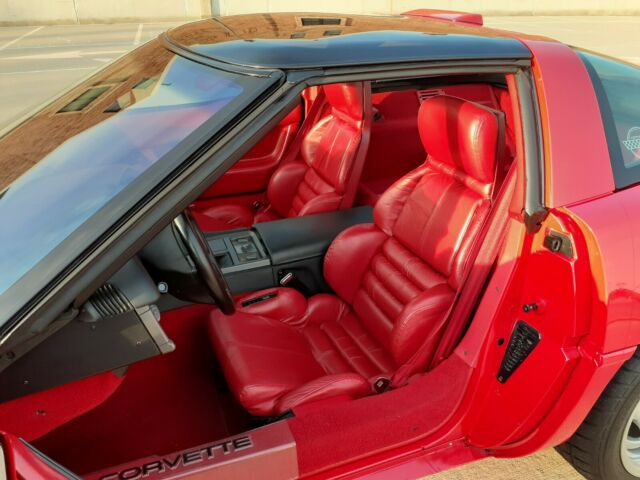

Other exterior modifications include a hard coated acrylic roof panel, and seven additional exterior colors. The interior came standard with leather sports seats and a Delco/Bose sound system.

Tested performance figures byRoad and Trackmagazine include a 0–60mph (0–97km/h) acceleration time of 4.9 seconds, a quarter mile time of 13.4 seconds, braking distance of 132ft from 60mph and 233ft from 80mph along with skidpad acceleration of 0.94g. The car's tested top speed by the magazine amounted to 179mph (288km/h).

GM found that the engine required special assembly, and that neither the Corvette plant in Bowling Green, Kentucky nor any of their normal production facilities could handle the workload, soMercury Marinecorporation ofStillwater, Oklahomawas contracted to assemble the engines under their MerCruiser division, due to their experience in working with aluminum, and ship them to the Corvette factory in Bowling Green where the ZR-1s were being assembled. The engine assembly involved 95% drilling and boring completed at the Mercury Marine plant. The engine was largely assembled by hand and was Dyno tested before being sent to Chevrolet. Mercury Marine secured two LT5 V8 engines for itself. These engines were used in the ZR-1 owned by the company president and a custom made speedboat called the "Wet Vette". The engine was modified to be used in the boat and had an increased output of 420hp (313kW).[10]

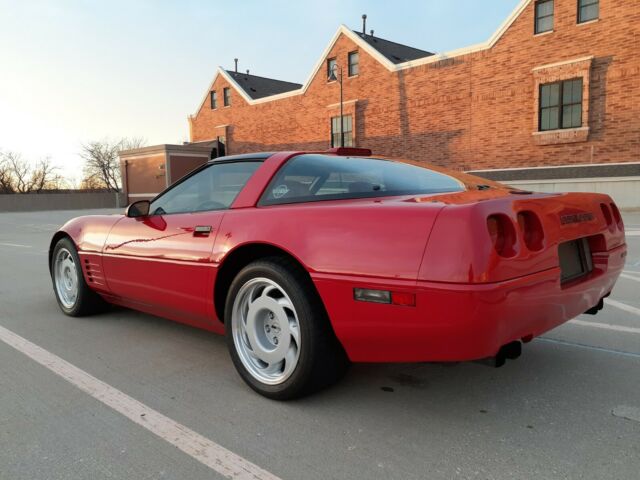

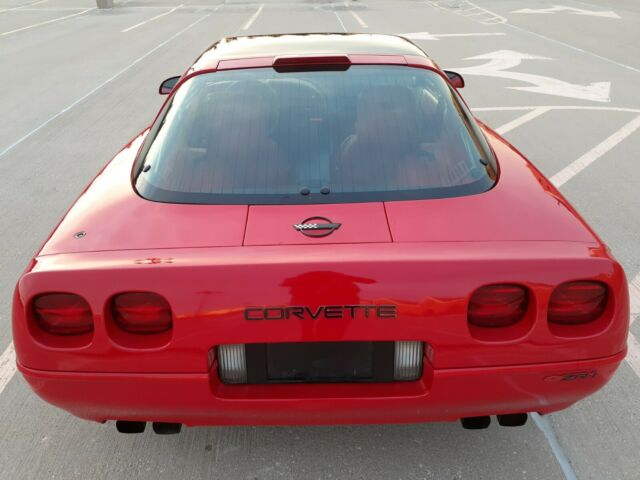

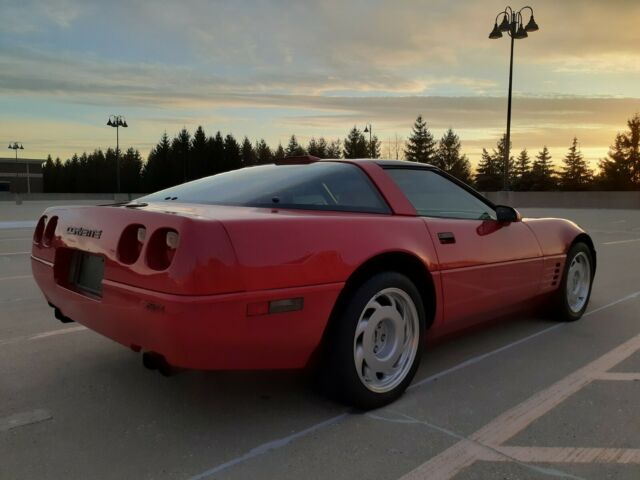

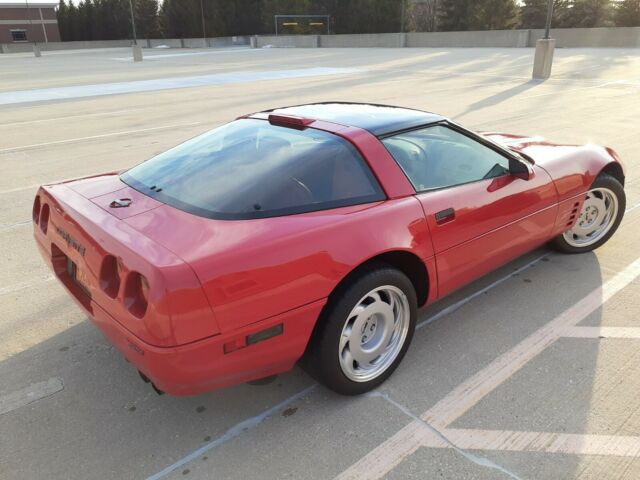

The ZR-1 was introduced at the1989 Geneva Motor Showand went on sale later that year and was available only as afastbackcoupébodystyle with a removable roof panel. It was distinguishable from other Corvette coupes by its wider tail section, 11-inch wide rear wheels and its new convex rear fascia with four square shapedtaillightsalong with a special red ZR-1 badge in between.

A true Collector car only to Increase in value.695 of these ZR1's in this color coupes have been made*(*ZR1 Net Registry)This Car comes with Leatherette Portfolio. And Performance Key to activate and disable mode.
BID WITH CONFIDENCE - BUY SMART SAVE BIG!!! For additional information please contact us at theglenautosales@gmail.com orOffice phone 1(847)834-0128 office hours 9:00am - 5:00pm
You are encouraged to inspect vehicle PRIOR to bidding or making offer
PLEASE ASK OR INQUIRE WITH ALL QUESTIONS PRIOR TO BIDDING OR MAKING ANY OFFERS, YOUR BID AND OFFER IS A CONTRACT TO BUY PER EBAY RULES. THANKSThank you for looking and good luck bidding!!!!

!!! FREE SHIPPING WITH BUY IT NOW PRICE!!!

-NO FINANCING -
Deposit on the amount of $500 can be paid by credit card or PayPa, balance can be paid in person or you can send a wire transfer to our dealership.
- Deposit allows 5 days to pay the balance or deposit will be lost
- We can assist with shipping
-Please contact us to find out more information regarding the item before making the offers
