1971 gmc c15 c10 c-10
1971 Chevrolet C-10
Technical specifications of Chevrolet C-10 1971 | |
---|---|
Price: | - |
Condition: | Used |
Item location: | Manchester, New Hampshire, United States |
Make: | Chevrolet |
Model: | C-10 |
Year: | 1971 |
Mileage: | 9,999,999 |
VIN: | cs148f123967 |
Color: | Black |
Engine size: | 408 |
Drive type: | RWD |
Interior color: | Black |
Vehicle Title: | Clear |
You are interested? | Contact the seller! |
Car description |
---|
Front Suspension:
• Baer Pro+ Kit, 14" Rotors, 6-Piston, 6-Lug, 6x5.5 BP, C10, Red
• Porterbuilt extreme drop member
• Porterbuilt upper and lower arms
• Porterbuilt shocks and mounts
• 76 Chevy C10 upper and lower ball joints
• Dominator 2500 air bags
• Air ride technologies RidePro e3 arc4100e3
• Flaming River Rack and Pinion for 91 Mustang
• 5/8" left hand thread heim joints
Rear Suspension:
• Watts link
• Parallel 4-Link Kit with Ballistic Fab cartridge joints, forged aluminum link bars with 3" of adjustment.
• Slam Specialties SS7 bags
• Baer 13" brakes for Truck 12b (with integral "shoe/drum" parking brake
Engine:

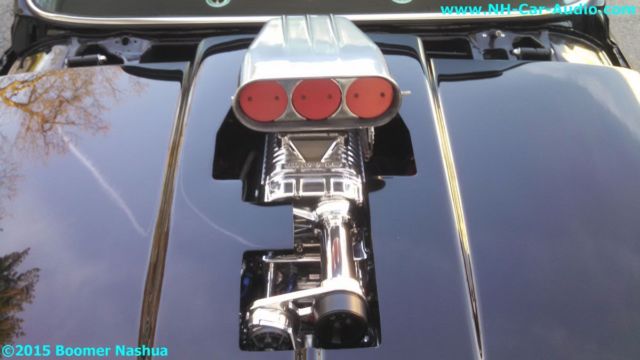

• Blower - Whipple:WK-18010P-W200AX/R SC
• Callies Dragon Slayer crank.
• Callies forged 8.5 pistons.
• Callies H beam forged rods.
• Speed Inc. SC3 cam. 226 234 .598 .599 117lsa
• Morel comp lifters.
• Scorpion LS3 roller rockers.
• Cadillac LSA heads with a port and polish.
• PAC1521 springs, PAC keepers and retainers.
• Comp-Cams Chromo push rods
• H3 Alpha pan and tray
• Double chain timing set
• Frozen Boost Water to Air Intercooler Radiator - 24x12x1 (Type 100)
• Bosch Cobra intercooler pump
• AN 8 lines and fittings for intercooler.
• Texas Speed ported LS2 oil pump
• Ward welded valve covers
• ARP fasteners throughout, head studs and stainless bolts
• Cometic gaskets
• ATI LS1 Fluid Damper
• Entropy LS1 conversion radiator with twin 16" fans and monster transmission cooler.
• EV1 Bosch 1000cc injectors - 95.1lb injectors.
• FAST Dominator throttle body
o 307604p http://www.fuelairspark.com/fas/polished-high-flow-4500-style-4-barrel-flows-2000-cfm-includes-ford-style-tpshtml/
• DPE Corvettes 2.5 BAR MAP
o http://dpecorvettes.com/gpage4.html
• MSD LS1 Coil packs and 10mm custom wires.
• Twin Automotive Stealth fuel pumps
Transmission:
• GMPP 4L80E
• Transgo 2 shift kit
• Transgo billet internals
• RevMax 3900 RPM stall billet converter

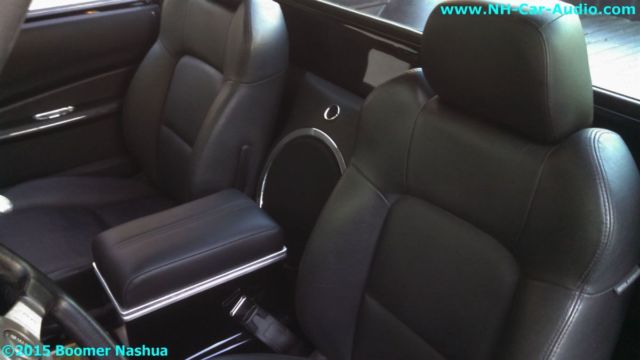

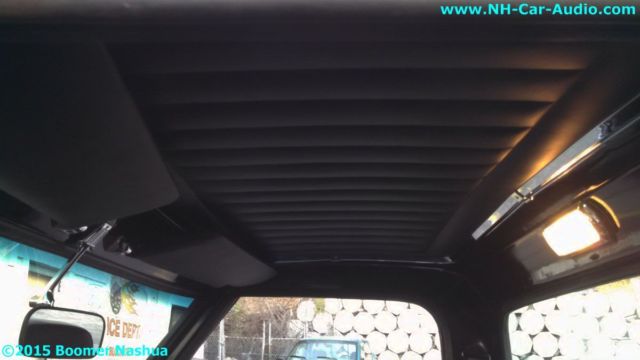

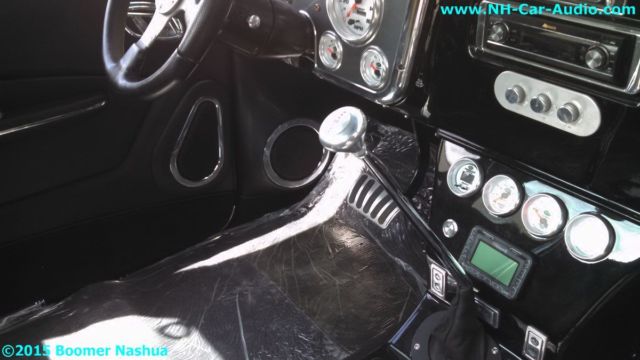

Interior:
• All custom with Fessler door and kick panels
• "high hump" transmission cover (with stock cab floor).

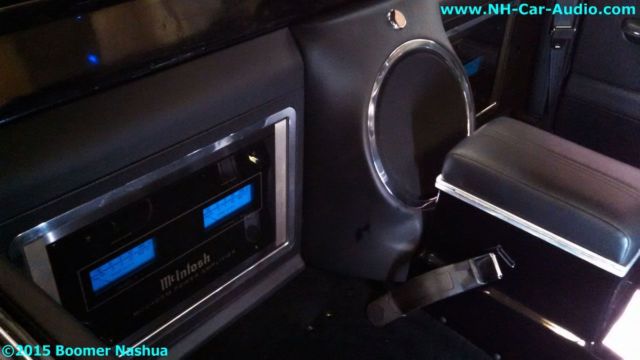

• Custom center console:
http://www.classictruckconsoles.com/customers/72suburban/forum.gif
• Vintage Air Magnum Gen 4 kit 35704VUD
Gas Tank:
• Boyd fabrication aluminum with 3 Wal-bro 255 pumps
• -8AN feed line
• -6AN return line
• Tank fill through bed side
Frame:
• 1970 GMC Frame
• Mix of stainless hard and -6AN air lines.
• Aluminum and -AN fuel lines.
• Headers in frame rails, with exhaust crossing under to exit bed side.
Wiring: All soldiered and heat shrunk, with flex loom.
Engine ; "2001 LS" wired for speed density - throttle position sensor, Idle air control, intake temp sensor, crank position sensor, cam position sensor, coolant temp sensor, injectors x8, coils x8, 3 bar MAP sensor, 4l85E transmission
Wiring Harness: http://www.painlessperformance.com/webcatalog/largeview.php?SearchField=60617
All the standard circuits plus:
• HD headlight wiring harness - all four LED headlights hi/low beam via relays (have the harness built)
• Dual fuel pumps in tank
• Air ride technologies RidePro e3 arc4100e3
o Ride height sensors
o "Big Red" air block with PSI sensors
o USB control panel with 3 ride height presets
o Dual Thomas electric compressor through Air Ride Pro3E
• Fog lights in bumper
• AC - Vintage air: Magnum Gen 4 kit 35704VUD
• power seats (12v and ground - relay off the harness)
• Electric Life power windows - twin switches on center console
• Electric Life power door locks - switch on center console
• 2 cooling fans (relay from ECM)

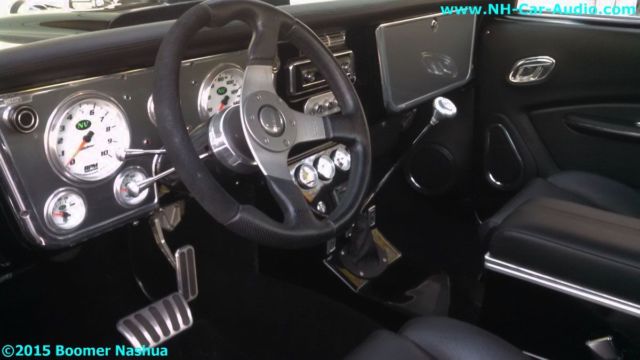

• Gauges: Auto Meter - speedo, tachometer, fuel, battery, *engine temp, *oil pressure, *boost, shift light, *fuel pressure and *trans temp
§ *requires additional senders and circuits
• All LED external lights
