AMC AMX JAVELIN

Amc amx javelin vin#A2M798P176897

360ci 4speed go package

A- AMC

2- 1972

M- 4speed

7- Javelin

9- 2 door hardtop

8- AMX

P- 360 4V

176897

Kenosha

Paint- D7 Trans-AM Red

Trim-2613

2- 1972

61- Black

S- Wellington" vinyl

Model 7279-8

72- 1972

7- Javelin

9- 2 door hardtop

8- AMX

Engine block

#3185528. 360ci 1972

1/2 head bolts

3220 AMX Javelin where made in 72, 1830 with the 360

Heads

Left head #3196291

Right head #3212993

Transmission

#3215793/13-04-010

T10P-1B case

T10P-7A tail stock

T10P-6 bearing retainer

Borg-warner code "V" short throw front 10 spline 5 groove shaft, 28 back spline shaft.

Ratio 2:23

1st 2.23

2nd 1.77

3rd 1.35

4th 1.00

Date code. D-2-71

The "V" series is most desirable Borg-warner transmission and usually most expensive when and if found.

Rear end

Dana 20

8 7/8 inch axles

A= 3.53:1?

Engine work.

Thermal clean block

Square deck block

Bore 8 cylinders .030

Hone Block

R & R freeze plugs

Degrees Auto crank

Degrees rod set

Install new piston set

hang/align v8 360

plug kit cam bearing set

Pistons

Sealed Power#844-W362NP

Cast Piston .030 over

AMC 360

4.080" Bore

Dish, with four valve reliefs

Ring Grooves: 5/64

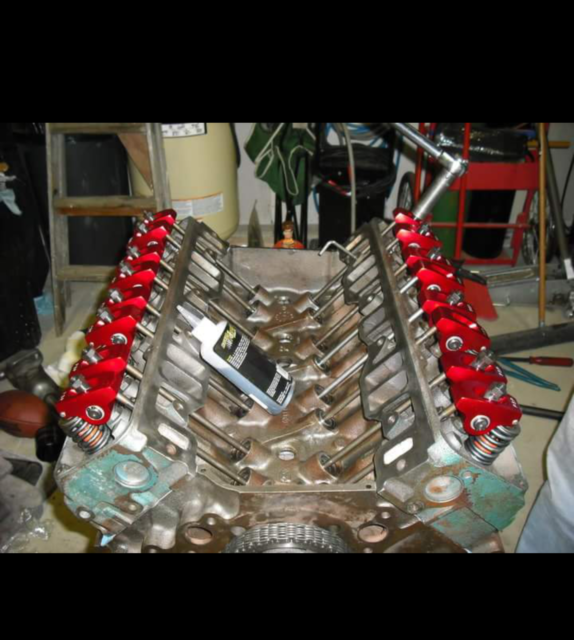

Rockers

PSP roller rockers 1.6

Rings

PC piston ring .030

Bearings

All new .030 over bearings do not remember the brand.

Comp cams

Fireball 306 hydraulic cam kit

Lift

Intake @ cam 300 at valve 480

exhaust @cam 300 at valve 480 rocker arm 1.6

Valve timing

intake 30 ?BTDC closed 96 ?ABDC

exhaust open 78 ?BBDC closed 48 ?ATDC

.050 cam lift timing

Intake open 3 ?BTDC close 41 ?ABDC exhaust open 51 ?BBDC close (-7) ?BTDC

Minimum rpm 2500

maximum rpm 5500

valve float 6000

Heads have been.

Cleaned

New valve stem seals

valves seated

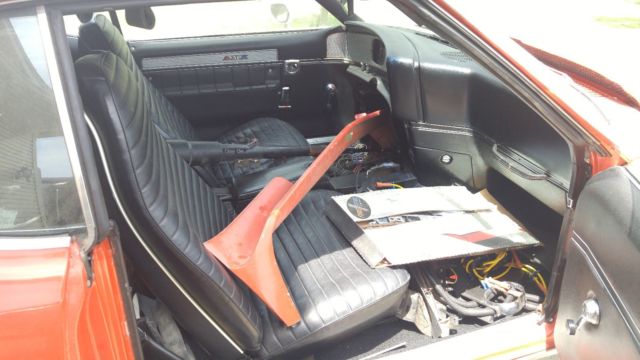

The interior is in fantastic shape. there are no rips, stains or tears great looking? everything works great.

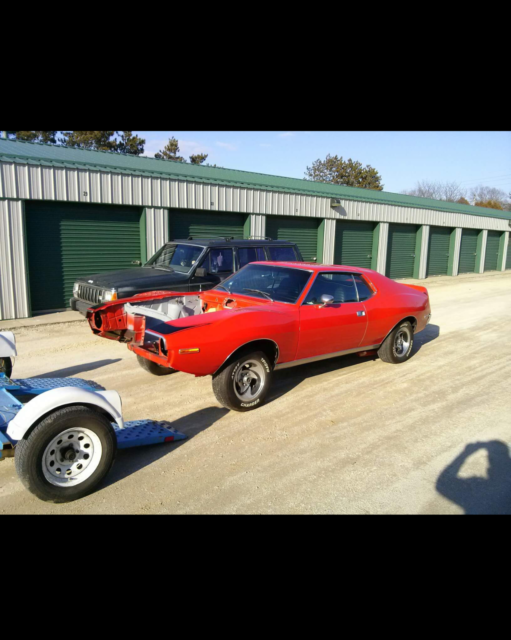

The exterior of the car is in good condition. it has a few little dents nothing big at all the paint is clear bright and smooth there is no fading, orange peel or rust bubbles or any rust showing at all car is very solid inside and out. The hood has some damage dropped.

Lights and glass

The glass is in good shape the back glass has a few scuffs on it, front windshield has a couple little pits in it. side glasses are in perfect shape. front headlights & turn signals are in great shape the rear tail lights have some cracks and pitting in the Chrome.

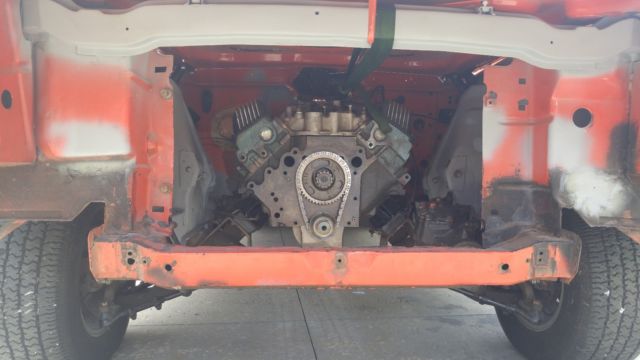

The engine bay was being redone but no time to finish it needs sanded and painted.

I will have more pictures put on.
